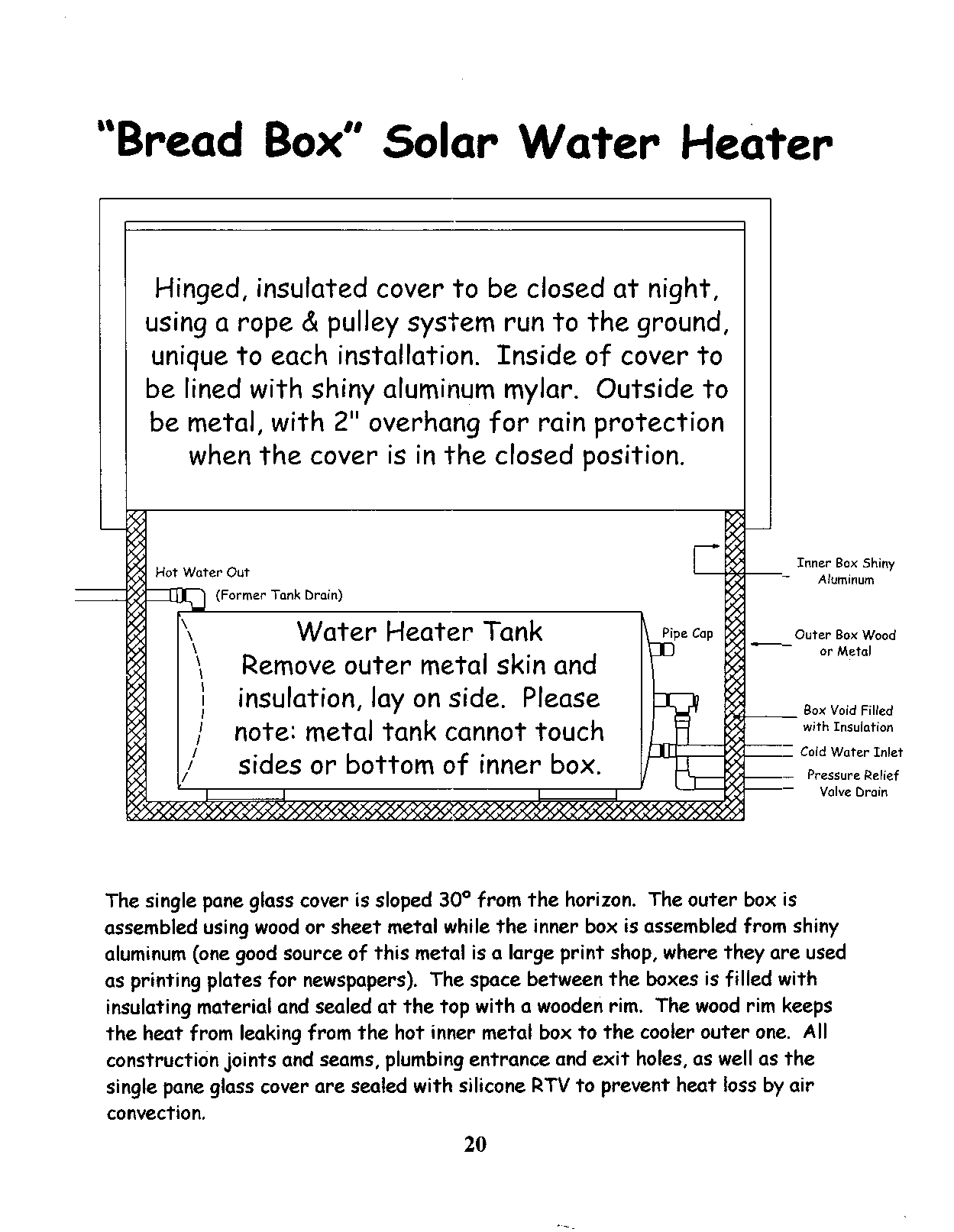

Batch Water Heater from Maine Solar Primer

This is a simple batch water heater design that is best suited for summer use in a cold climate (perhaps at a cottage), or year round use in a warm climate.



It is from the Maine Solar Primer, 2nd Edition.

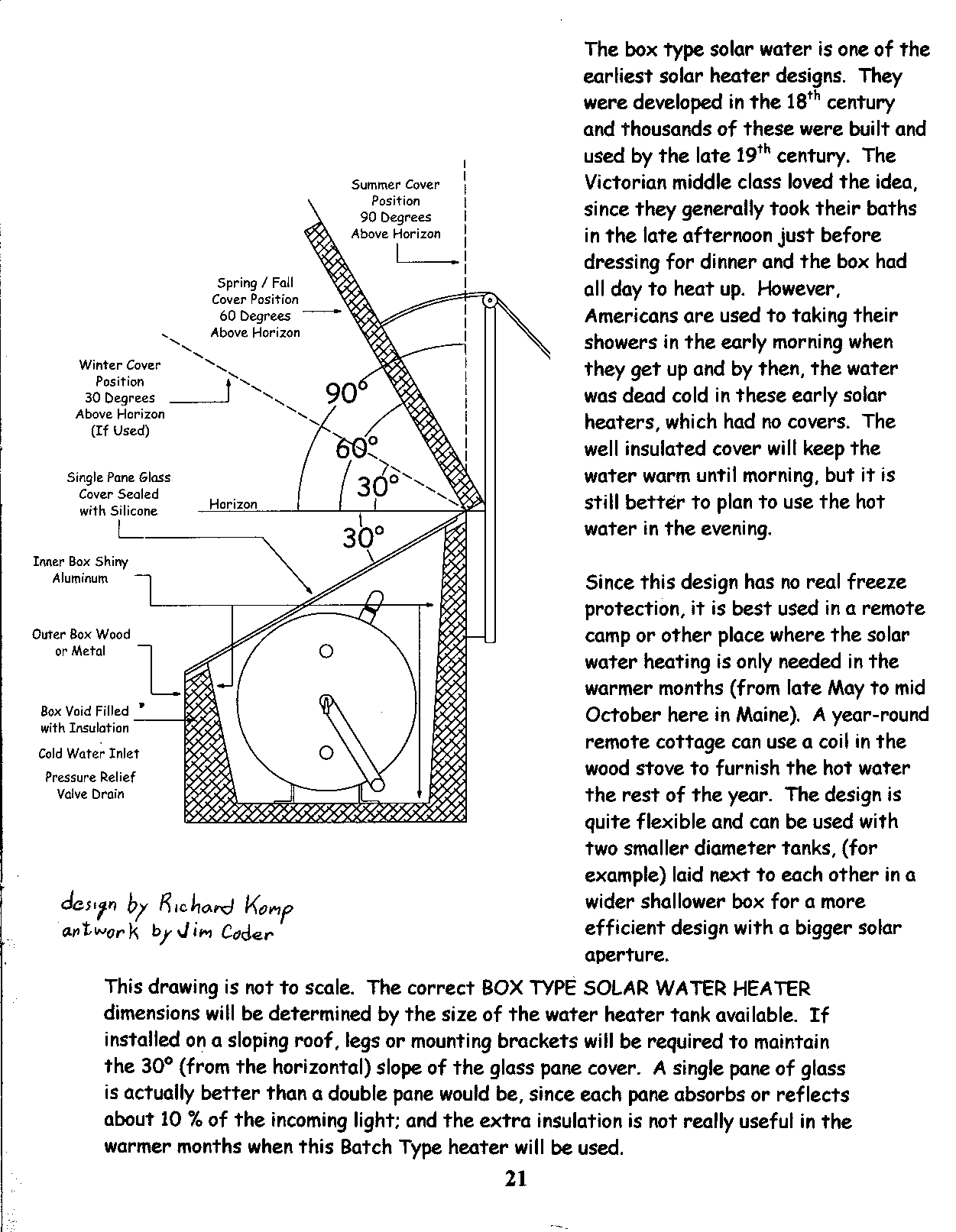

The design is by Richard Komp and illustrations by Jim Coder.
